I will show you how to upgrade TP-Link flash chip on TP-Link from 4mb to 8mb.
1. Pre-requirement
- New flash chip: I used Winbond 8MiB GD25Q64CSIG
- Soldering iron: desolder old flash chip and re-solder new flash chip
- ROM programer and IC socket: I am using CH-341A (~ 5$)
- One PC/Laptop
2. Let’s do it
2.1 Desolder old flash chip
Hot air soldering station is ideally suited for desoldering flash. If you not, you can follow this video to do this.
2.2 Program new flash chip
Firstly, you need to choose new flash chip you want to replace. Why I chose Winbond GD25Q64CSIG for replacement, see table bellow:
| Description | Original | Mod |
|---|---|---|
| flash | GigaDevice GD25Q32B (4MB) | Winbond GD25Q64CSIG (8MB) |
| firmware | TL-WR840N(VN)_V5_170517 | openwrt-18.06.1-ramips-mt76x8-tl-wr841n-v13-squashfs-sysupgrade |
I see the name of flash chip is the same, so I didn’t checked datasheet for compatible.
Secondly, you need to choose OpenWRT firmware. Why I used openwrt-18.06.1-ramips-mt76x8-tl-wr841n-v13-squashfs-sysupgrade instead of openwrt-18.06.1-ramips-mt76x8-tl-wr840n-v5-squashfs-sysupgrade?
Because it used the same CPU and different in flash and RAM chip.
| Description | TP-LINK TL-WR841N v13.x | TP-LINK TL-WR840N v5 |
|---|---|---|
| CPU | MediaTek MT7628NN (580MHz) | MediaTek MT7628NN @575MHz |
| RAM | Winbond W9751G6JB-25 (64MB) | ESMT M14D5121632A (64MB) |
| Flash | GigaDevice GD25Q64CSIG (8MB) | GigaDevice GD25Q32B (4MB) |
In the first time, I faced this problem. I can not save any configuration after reboot. If you look at boot log, it read:
fixed-partitions partitions found on MTD device spi0.0
Creating 3 MTD partitions on "spi0.0":
0x000000000000-0x000000020000 : "boot"
0x000000020000-0x0000003f0000 : "firmware"
2 tplink-fw partitions found on MTD device firmware
0x000000020000-0x00000017d048 : "kernel"
0x00000017d048-0x0000003f0000 : "rootfs"
mtd: device 3 (rootfs) set to be root filesystem
1 squashfs-split partitions found on MTD device rootfs
0x0000003b0000-0x0000003f0000 : "rootfs_data"
0x0000003f0000-0x000000400000 : "factory"
m25p80 spi0.0: s25fl064k (8192 Kbytes)
VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
Freeing unused kernel memory: 208K
This architecture does not have kernel memory protection.
init: Console is alive
init: - watchdog -
random: fast init done
kmodloader: loading kernel modules from /etc/modules-boot.d/*
kmodloader: done loading kernel modules from /etc/modules-boot.d/*
init: - preinit -
rt3050-esw 10110000.esw: link changed 0x00
random: procd: uninitialized urandom read (4 bytes read)
jffs2: Too few erase blocks (4) --> Your image is probably too big, leaving not enough space for jffs2.
mount_root: failed to mount -t jffs2 /dev/mtdblock4 /tmp/overlay: Invalid argument
mount_root: overlay filesystem has not been fully initialized yet
mount_root: switching to jffs2 overlay
mount_root: switching to jffs2 failed - fallback to ramoverlay
urandom-seed: Seed file not found (/etc/urandom.seed)
No /overlay will be mounted:
root@OpenWrt:~# df -h
Filesystem Size Used Available Use% Mounted on
/dev/root 2.3M 2.3M 0 100% /rom
tmpfs 29.5M 532.0K 29.0M 2% /tmp
tmpfs 29.5M 56.0K 29.5M 0% /tmp/root
overlayfs:/tmp/root 29.5M 56.0K 29.5M 0% /
tmpfs
If everything is good, it should be like this:
root@OpenWrt:~# df -h
Filesystem Size Used Available Use% Mounted on
/dev/root 2.3M 2.3M 0 100% /rom
tmpfs 29.5M 540.0K 29.0M 2% /tmp
/dev/mtdblock4 4.1M 304.0K 3.8M 7% /overlay
overlayfs:/overlay 4.1M 304.0K 3.8M 7% /
tmpfs 512.0K 0 512.0K 0% /dev
root@OpenWrt:~#
root@OpenWrt:~# cat /proc/mtd
dev: size erasesize name
mtd0: 00020000 00010000 "boot"
mtd1: 007a0000 00010000 "firmware"
mtd2: 0015d05b 00010000 "kernel"
mtd3: 00642fa4 00010000 "rootfs"
mtd4: 00410000 00010000 "rootfs_data"
mtd5: 00010000 00010000 "config"
mtd6: 00030000 00010000 "factory"
Now, you have new flash chip and suitable firware, but you can not use this firware to program new flash chip. Because RAW flash need more partion than firmware such as: bootloader and art. See more in here
You can use bellow shell script to generate firmware for any flash with different capacity.
set -e
flash_size_in_MB=8
sysupgrade_OpenWRT="openwrt-18.06.1-ramips-mt76x8-tl-wr840n-v5-squashfs-sysupgrade.bin"
art_file="upload_openwrt_art.bin"
boot_loader="upload_openwrt_mtd0.bin"
sysupgrade_OpenWRT_size=$(wc -c $sysupgrade_OpenWRT | cut -f 1 -d " ")
art_file_size=$(wc -c $art_file | cut -f 1 -d " ")
boot_loader_size=$(wc -c $boot_loader | cut -f 1 -d " ")
echo "sysupgrade_OpenWRT_size: " $sysupgrade_OpenWRT_size
echo "art_file_size: " $art_file_size
echo "boot_loader_size: " $boot_loader_size
padcount=$(($flash_size_in_MB * 1024 * 1024 - $boot_loader_size - $art_file_size - $sysupgrade_OpenWRT_size))
echo " Write boot loader"
dd if=$boot_loader bs=512 >> "${sysupgrade_OpenWRT}_dump".bin
echo "Write firmware"
dd if=$sysupgrade_OpenWRT bs=512 >> "${sysupgrade_OpenWRT}_dump".bin
echo "Write padding FF"
dd if=/dev/zero ibs=1 count="$padcount" | tr "\000" "\377" >> "${sysupgrade_OpenWRT}_dump".bin
echo "Write art partition"
dd if=$art_file bs=512 >> "${sysupgrade_OpenWRT}_dump".bin
| parameter | Description |
|---|---|
| flash_size_in_MB | new flash chip capacity |
| sysupgrade_OpenWRT | OpenWRT image (firmware) |
| art_file | ART partion from original flash, the last 64k block of the chip no matter what the chip size. |
| boot_loader | bootloader, the first 128kB from original flash |
| Output firmware | sysupgrade_OpenWRT_dump.bin, you can use this to program your new flash chip |

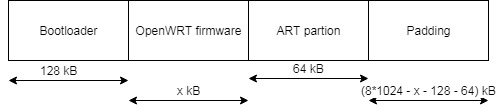

If you don’t want to use this script, you can create image by yourself. You may to need hex editor like HxDen to do this.
All file which I used in here
2.3 Re-solder new flash chip
After use CH341A to program new flash chip, you can re-solder new flash chip on target board.

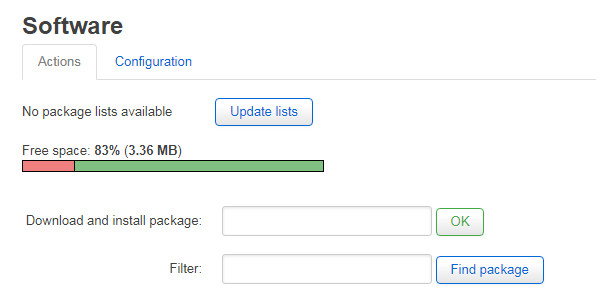

3. Enjoy
